Suppressor Project Summary      Back to Suppressor Project Page



Ilkka Kyttälä
Rauno Pääkkönen

Translation by the authors  •  Tampere 1995


Shooting range and suppressor projects 1992-1993.

Financing: Ministry of Education, Ministry of Environment, Ministry of Labour, Lapua Oy

Supervisors: Yrjö Tolonen, Pertti Kärpänen and Risto Järvelä, Ministry of Education; Antero Honkasalo, Ministry of Environment; Seppo Palmu, Ministry of Defence; Ilkka Heikkilä, Defence Materiel Establishment; Esa Puurtinen, Technical Inspection Center, Juha Tikkanen and Ilkka Kiianlinna, Finnish Shooting Association; Juha Kairikko, Finnish Hunters' Association and Erkki Kiukas Hunters' Central Organization.

Authors: Ilkka Kyttälä, Ministry of Labour; Rauno Pääkkönen, Institute of Occupational Health; Kari Pesonen, Kari Pesonen Consulting Engineering Ltd; Juha Eväsoja and Matti Vähäpassi, Cartridge Factory LAPUA Ltd; Juha Hartikka, BR-Tuote; Kalevi Nurmentaus; Juhani Salo, Asetiimi Ltd; Rauli Lonka; Jorma Santala; P.T. Kekkonen; Seppo Martiskainen and Tarmo Romppanen, Jaakko Seppänen and Veli Oravainen, Kuopio Arms Depot; Seppo Roininen and Salme Marttio, Soil and Water Ltd; Lauri Heikkinen and Lauri Suomalainen, PI-Consulting Ltd; Heikki Tuominen and Juhani Nuotio, Finnish Acoustics Centre Ltd; Juhani Ollila, Institute of Occupational Health. Markku Makkonen, ministry of Labour.





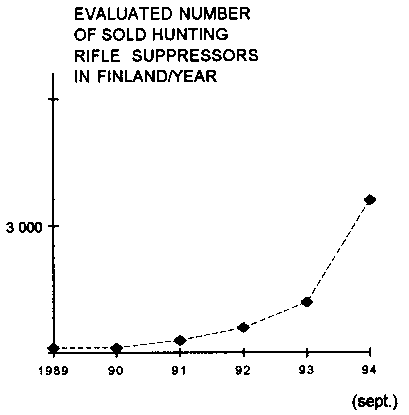

In 1992 a joint project was established in Finland to test suppressors of rifle caliber firearms and various shooting range structures against shooting noise. There were several reasons for this, e.g. the adverse effects of shooting ranges on nearby settled areas and the great number of hearing injuries among shooters, supervisors and other people present. Suppressors and better structures seemed to offer further possibilities in saving the shooter's hearing and reducing the area required around the shooting ranges.

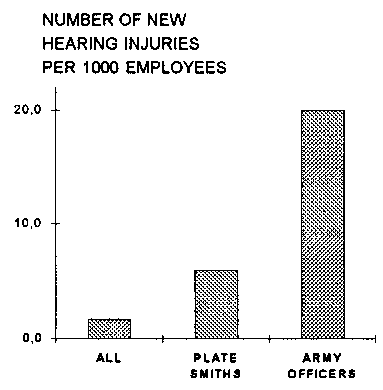

Source: 1988 population counting and 1983 to 1988 statistics of occupational diseases


Comparative measurements were made mainly using cal. 7,62 Kalashnikov-Valmet M62 assault rifles, common .308 caliber hunting rifles and 12 cal. shotguns, with and without suppressors. The purpose was to test the acoustic and other essential properties of the suppressors, bullet noise barriers and other structures and their effects on shooting. After the tests and reports a summary for information purposes was produced, which - after statements - was corrected to get the present form:


(Only the "new findings")



All rifle suppressors reduced the shooter's exposure from the original 160 ± 3 decibels to below the EU risk limit 140 dB. Differences between brands were small. Shotgun suppressor prototypes approached the limit only when used with subsonic cartridges. At the bystander's and trainer's positions noise reduction was similarly effective. Environmental noise attenuates almost as well in back and side sectors. The front sector is dominated by ballistic noise, which is not affected by suppressors. Bullet noise, however, is concentrated in higher frequencies than muzzle blast and thus attenuates faster when propagating.

1) Cal. .22 suppressors were most effective; attenuation more than 30 dB. On hunting rifles the same effect was achieved only with an oversized prototype made by Jorma Santala.



An obstacle of about 2,5 m - embankment, barrier or combination of them - attenuates the bullet noise by 10 to 20 decibels. The most advantageous results are obtained when the distance of the flight path from the barrier is less than one meter and it goes two meters lower than the top of the barrier; or in other situations where the proportions are similar, e.g. in a canyon. The barriers can support each other by connecting them with overhead safety wings.



All brands of tested muzzle brakes increased the shooter's exposure by 5 to 10 dB. The increase in noise exposure is proportional to the recoil reducing effect of the muzzle brake. Replacing it by even a modest suppressor may thus produce a considerable 20 dB improvement at the shooter's position. This principle is valid for all weapons equipped with muzzle brake. Suppressors reduced recoil energy by 20 to 30 per cent, or about as much as muzzle brakes. They also prevented muzzle climb of assault rifles, firing full-auto bursts or continuous rapid fire.



Suppressors did not have any notable adverse effect on shooting accuracy. The best group diameters of assault rifle hits were achieved with suppressors. The mounting of long extensive suppressors must, however, be done with great skill.


When the suppressor (or equal weight) is mounted on the barrel muzzle, the center of the group of hits of hunting rifles was usually shifted down by about 10 cm (shooting from machine-rest, target at one hundred meters). For assault rifles correspondingly 25 cm left and down, but when shooting from bench rest about 15 cm right. The reason for this shift are changed vibration properties. It is compensated by normal re-adjustment of the sight. When shooting from a machine-rest the vibrations change in a way, which does not represent the real use.



When shot close, blank cartridges can be louder than bulleted ones and they indeed cause most of the acute hearing damages of conscripts. The simulated gunfire should be achieved with methods 25 dB less loud than at present. The tested suppressor models do not apply for Finnish wood-bulleted military blank cartridges. However, they apply for usual blank cartridges with folded head. Harmless theatre weapons which sound "real" are also available. Shooting indoors with non-suppressed blank cartridges generally means the risk of immediate loss of health.



Suppressors hide the muzzle flash and effectively prevent the movement of foliage, grass or twigs and puffs of sand or dust.



The ballistic "whiplash" noise of a bypassing bullet (around 155 dB at 0,65 meter distance) is an unavoidable environmental problem, if the velocity of the projectile exceeds the velocity of sound in air (from 310 to 350 meters per second depending on the temperature and air pressure). No suppressor can prevent bullet flight noise. The diameter, length and shape of the bullet affect only slightly. The ballistic noise does not affect the shooter's exposure. Ballistic noise concentrates in higher frequencies and thus attenuates, when propagating, faster than the muzzle blast.



The ballistic noise of the pellet swarm (and the cup) can be even louder than the muzzle blast. It strongly increases the peak levels in the front sector and slightly to the side and backwards. Good results can be obtained only when using subsonic cartridges (v0 around 300 m/s). For the two prototypes, peak levels of 142 and 144 dB were measured at the marksman's ear.



Unjacketed bullets produced many times more lead vapor than jacketed ones. Also .22 caliber weapons produce lead vapors. Lead concentration can become a health problem at inside shooting ranges. Suppressors make a part of the lead emission harmless by solidifying it as card. Suppressors also burn a part of the otherwise not burned, sensitized powder that may cause a fire or even explosion risk in insufficiently cleaned indoor shooting ranges (five persons died in this kind of accident in Argenbühl, Germany 1993). On the other hand, it is possible that powder can build up inside a suppressor and cause a risk of explosion (cases not known).



Suppressors do not decisively favor poaching or other criminal activity since they do not affect the bullet noise. The bass tuned 130 - 140 dB sound of the suppressed muzzle blast is also heard quite far, yet is not so disturbing. (Complete suppressors only exist in cinema). Because of the prejudice caused by the old hunting legislation, a person who hunts with a suppressed gun may have to carry a copy of the new law (615/93) for a long time.



The new telescoping suppressors increase the length of firearms by only a few centimeters and are not vulnerable even in harsh use. A steel suppressor increases the weight of an assault rifle by approximately 10 per cent (from 3.6 kg to 3.9 kg, for example), or - if it replaces a muzzle brake or a flash hider - only about 5 per cent; aluminum suppressor even less.



Steel suppressors seem to withstand continuous rapid fire, aluminum suppressors only in limited amounts. In automatic weapons the increase in the gate pressure can cause problems in mechanisms. For them further research is needed. The condensed water and lead can cause corrosion in untended weapons: After use the suppressor has to be disconnected and/or the barrel oiled.

To be properly stabilized, long bullets, which are used in subsonic cartridges, need the pitch of rifling to be less than 10 inches (generally 12 "). Instability of the bullet may, at least with long frontally mounted suppressors, cause contact with the suppressor structures, loss of accuracy and/or damage to the suppressor.



If only suppressed firearms are used (presumed average attenuation 12 dB), the land requirement is reduced to 1/16* or even smaller. This is valid as such at shotgun ranges if only subsonic cartridges are used. On rifle and pistol ranges proper bullet crack embankments and/or barriers may be necessary if natural obstacles do not exist. (Don't place a range on a hill).

* If noise level decreases by 6 dB, distance to the neighbor can be halved.



No shooting place constructions are needed when only suppressed weapons are used. If a shed is wanted for other reasons (e.g. against rain), it should have no walls and the ceiling should be lined with sound absorbing material like glass wool. At indoor shooting ranges (and under roofs) only a modest lining is necessary when only suppressed firearms are used. For unsuppressed weapons a thick layer of absorbtives and a solid structure (at least 20 kg/m2) is required, if there are neighbors in the same building.



The combined attenuation of protector and suppressor seems to remain modest. However, even when shooting with a suppressor it is good to wear (light) protectors: they help to concentrate.

In maneuvers, theatre or cinema production or exercises etc. all participating people should absolutely have hearing protectors, if present blank cartridges are used without suppression. The first shot is the most dangerous to hearing. If both shooters and bystanders use protectors in advance, and conscientiously, and the protectors are of an adequate type and fitted in, the protection is nowadays reliable. Large, heavy cups with stiff sealing discs and great frame force are suitable, expanding plugs as well. For heavy weapons double protection, cups + plugs, is used. Even that is not always enough. (Combined effect of cups and plugs is modest).



The unit price of a mass-produced suppressor may be reduced to about 200 to 300 FIM (20 to 30 £). The cost-effectiveness of suppressors is already now better than that of any shooting place constructions or hearing protectors.

The integrated noise control expenses for all Finnish outdoor shooting ranges, three alternatives:

"Traditional" (no noise control, new range acquired further away if difficulties);

trial and protector expenses 124 mio FIM (Assumption: associations own the land),

Structure oriented; embankment, barrier. shelter and protector expenses 290 mio.

Suppressor oriented; suppressor, cartridge and embankment expenses 143 mio, about 100 FIM (10 £) per practiser/year.

* Calculations are based on source 7 for a 20 year period. They do not include any expenses arising from hearing damages. As an average price of a suppressor, 850 FIM has been chosen.



The attenuation, or more precisely the insertion loss, of suppressors for rifle caliber firearms can be measured with sufficient accuracy for most practical purposes by a four-point method in free field*. The insertion loss is measured for rear sector and, if necessary, also for front sector with bullet noise eliminated.

* Work item proposal: Acoustics. Measurement of impulsive noise emission of rifles shooting supersonic projectiles. Engineering methods.



Survey type measurements with only one microphone can be made by a simplified method: one second exposure level SEL (LAX, LE1s) is measured 10 meters aside for five shots with and without suppressor. The ballistic crack has a negligible influence in this point and the measurement results obtained here represent fairly well the mean of encircling measurement results. Only combinations representing the same caliber class can be compared by this method.



Nowadays every engine driven vehicle or machine has an efficient muffler: attenuation several tens of decibels. The newest active control applications attenuate even the lowest frequencies down to background noise level*. For firearms active noise and vibration (shock) control is just beginning? Control of noise and other emissions is probably mainly transferred to designers of weapon factories, where it belongs; e.g. a common two-barreled shotgun is difficult to be attenuated afterwards. This way also the reliability of functions is best optimized.

* Herdouin L et al.: An anti-pulsatory device used as an active noise control system in a duct. Acta Acustica 1 (1993) pp. 189-198.



1    Työsuojeluhallitus, Selvityksiä 1/93, Vaimentimien mittaukset 1992, Tiivistelmä. Tampere 1993, 33+14 s. (Out of stock)

2    Opetusministeriö, Liikuntapaikkajulkaisu 39, Ampumaratojen melu- ja turvarakenteiden kehittäminen. Suomen Ampujainliitto ry, MV-konsultit/Maa ja Vesi Oy, Insinööritoimisto Kari Pesonen Oy. SVUL-paino, Helsinki 1993, 79 s.

3    Opetusministeriö, Liikuntapaikkajulkaisu 38, Sisäampumaratojen suunnittelu- ja käyttöopas. Suomen Ampujainliitto ry, Projekti-insinöörit Oy. SVUL-paino, Helsinki 1993, 43 s.

4     Pääkkönen R, Kyttälä I: Työhallinnon julkaisu 29, Kiväärien ja pistoolien äänenvaimentimet, Loppuraportti 1. Työministeriö, Tampere 1993, 96 s.

5    Pesonen K: Äänenvaimentimien vaikutus luotiaseiden laukausääniin ja ympäristömeluun. Ympäristönsuojelutekniikan julkaisuja 3/1994. Teknillinen korkeakoulu, ympäristötekniikan laboratorio. Espoo, 60 s.

6    Pesonen K: Äänenvaimentimien vaikutus haulikkojen laukausääniin ja ympäristömeluun. Ympäristönsuojelutekniikan julkaisuja 2/1994. Teknillinen korkeakoulu, ympäristötekniikan laboratorio. Espoo, 87 s.

7    Kukkola A: Ampumaratamelun yhteiskunnalliset kustannukset. Diplomityö. Lappeenrannan teknillinen korkeakoulu. Tuotantotalouden osasto. Lappeenranta 1994.

8    Kyttälä I: Vaimentimet ja ampumaratarakenteet, yhteenveto. Sisäisen lausuntokierroksen -94 yhteenveto. Moniste. Työministeriö. Tampere 1994.
